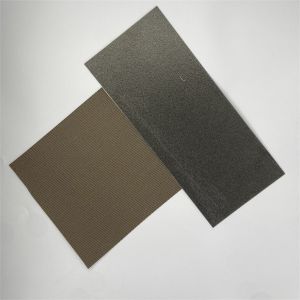

Effective Battery Thermal Runaway Protect Rigid Mica Sheet Winding Insulation

Ask Lasest Price
Brand Name :	FQ
Model Number :	TIX-10
Certification :	IATF16949
Price :	Fuzhou Fuqiang Precision Co.,Ltd.
Payment Terms :	L/C, T/T, D/P
Supply Ability :	1000pcs/day
Delivery Time :	1000 pcs/ days

Add to Cart

Product Details
Company Profile

Effective Battery Thermal Runaway Protect Rigid Mica Sheet Winding Insulation

Battery Thermal Runaway Protect Mica Sheet Winding Insulation Mica Materials EMI Insulators For Heat

Main Features

Mica Sheet is a versatile and high-performance heat and electrical insulation material. It is made from a combination of muscovite mica bonded with a special silicone resin. The result is a rigid sheet that can withstand elevated temperatures and provide very good dielectric strength.

Because of its combination of thermal and electrical properties, Silicone Bonded Mica is used in a variety of areas. These include high temperature washers and gaskets, brake grid insulators, thermal and electrical barriers and more.

This type of mica sheet will withstand continuous temperatures up to 500°C plus short-term spikes to 600°C. It has a very low thermal conductivity that effectively prevents heat transfer.

Silicone Bonded Mica is a rigid sheet with good mechanical strength. At ambient temperatures, it has a compressive strength of 350 MPa. It can also be cut, machined and drilled very accurately.

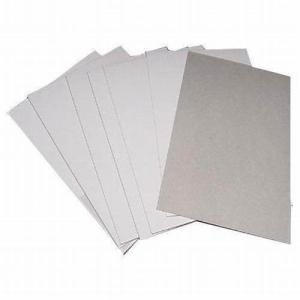

Effective Battery Thermal Runaway Protect Rigid Mica Sheet Winding Insulation

Saves electricity/power cost
Longevity
Cost Effective
Available in various thicknesses and sizes
Easy Available
Easy to Fabricate Parts
Gaskets
Available in various thicknesses (0.06mm -> 50mm)
Easy to store

Specification

Items	Unit	Muscovite	Phlogopite	Muscovite	Phlogopite
Type	−	Rigid		Flexible
Binder	−	Silicon or Epoxy
Thickness	mm	0.15~4.00	0.15~4.00	0.25~4.00	0.25~4.00
Tolerance	mm	±0.03	±0.03	±0.02	±0.02
Density	g/cm3	2.05~2.15	2.05~2.15	1.90~2.00	1.90~2.00
Heating Loss	%	≤1.00	≤0.60	≤2.00	≤2.00
Heating Grade	oC	≥550	≥950	≥550	≥950
Flexural Modulus	Kgf/mm2	≥23	≥20	−	−
Dielectric Strength	kV/mm2	>25	>20	>15	>15
Resistance	m·Ω	200~600	100~600	−	−

Standard Supply:

Thickness: 0.10-1.90mm+/-0.05mm

Size: 1000*600/1200/2400mm

We customized strips or parts according to the customer’s drawing or requirements.

Application

Electrical and thermal insulation for high temperature ovens.
The manufacture of insulators for heat exchangers.
Brake grid insulators.
Custom stand off insulators for high temperature requirements.
High temperature, dielectric gaskets and washers.
Bolt insulators.
The manufacture of insulation components for high voltage machinery, switchgear, furnaces and welding machines.
As an insulation material in the glass, ceramic, metal processing and power generation sectors.
